JSD2928

Product Overview

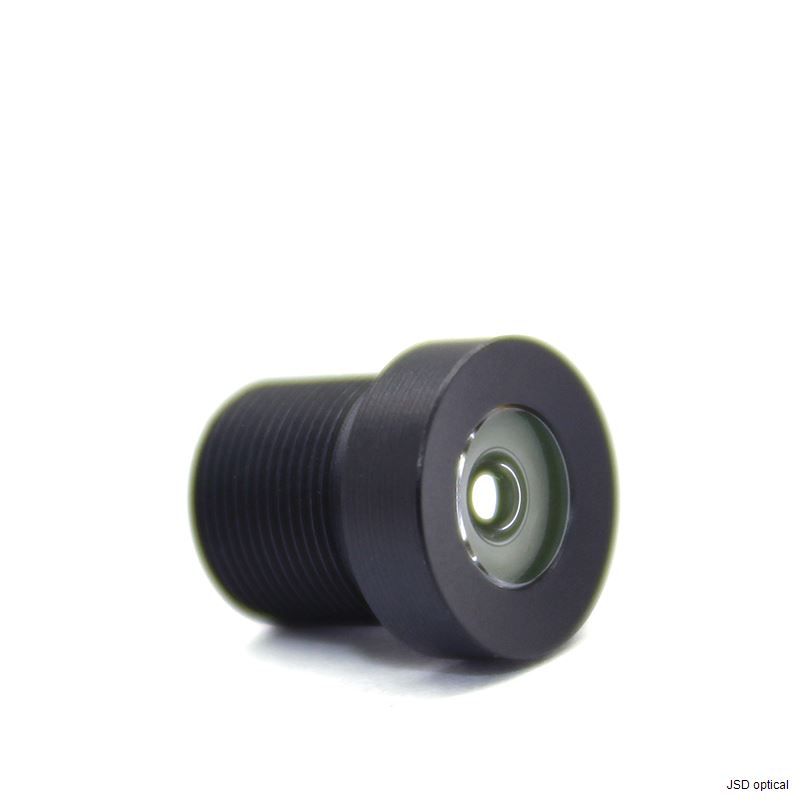

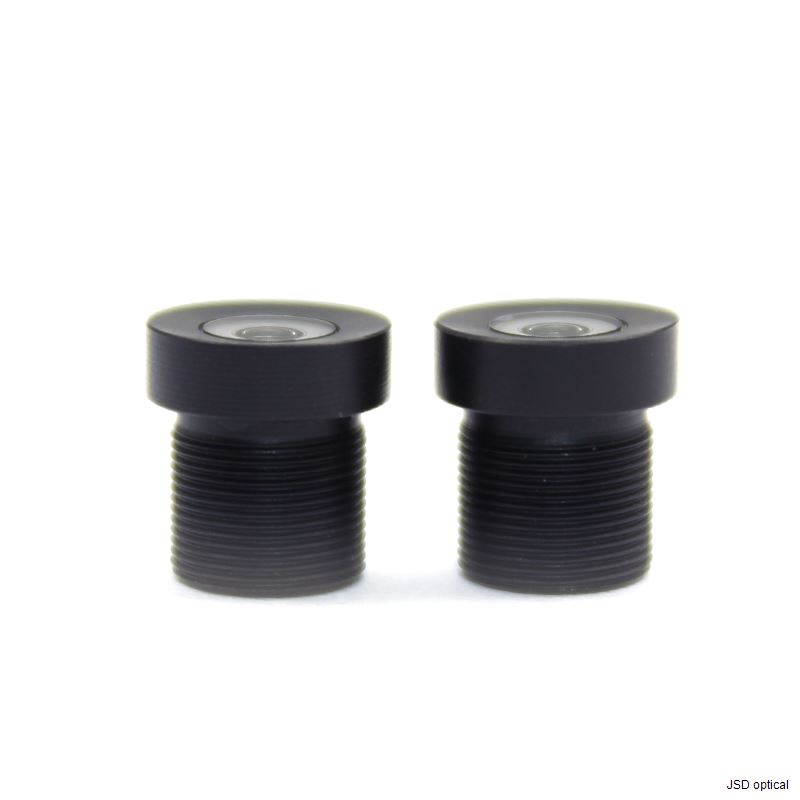

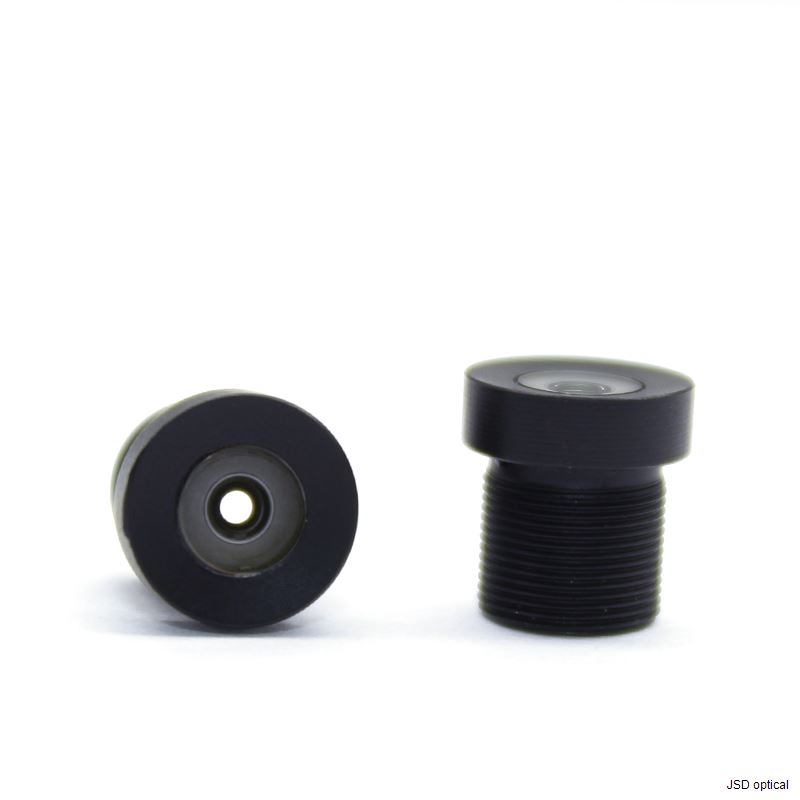

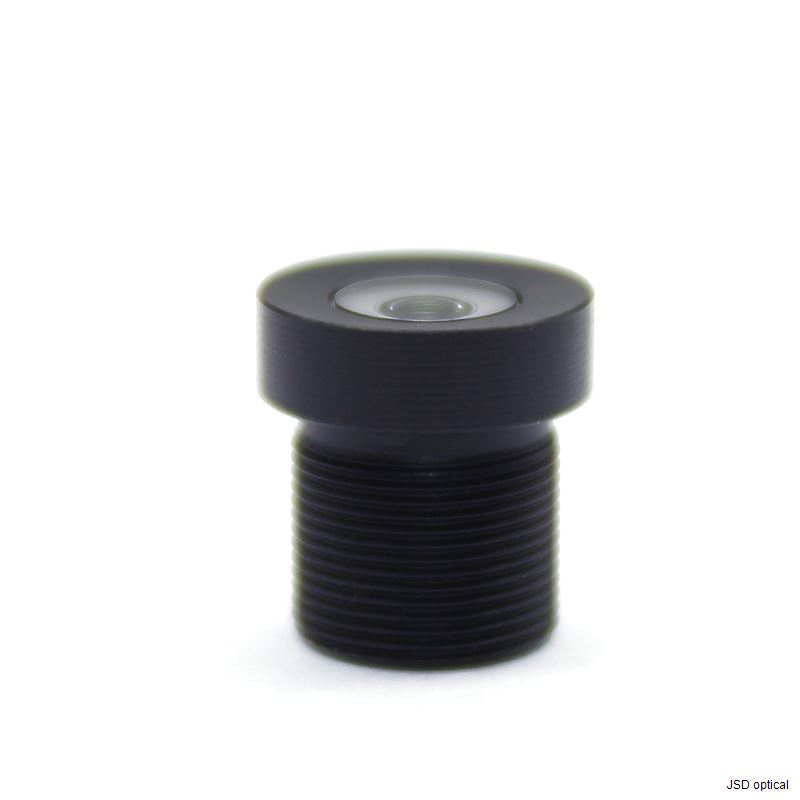

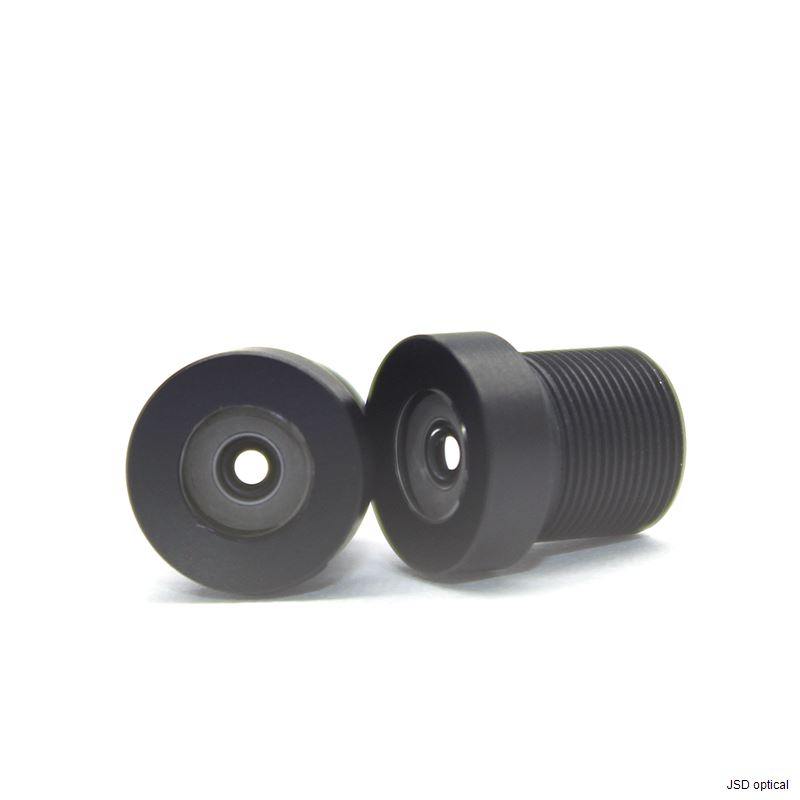

This ultra-compact M7 mount fixed focal lens (PN: JSD2928) is expertly engineered for 1/3.2-inch image sensors, delivering high-definition performance in a miniature form factor. With a 2.91mm focal length and F2.4 aperture, it provides a wide 114° field of view, making it ideal for portable electronics, biometric devices, and compact visual systems. Featuring 4MP resolution support and a short Total Track Length (TTL) of just 9.5mm, this lens ensures superior image sharpness and integration flexibility for space-constrained applications.

Key Features & Benefits

4MP High-Definition Resolution:Designed to resolve 4 Megapixel images, delivering crisp video and clear details suitable for modern HD consumer and industrial applications.

Ultra-Compact M7 Design:Featuring a small M7 thread and a short TTL of 9.5mm, this lens is specifically built for slim, lightweight, and space-limited devices.

Wide 114° FOV:Provides a broad field of view, allowing for substantial scene coverage and situational awareness without the need for bulky optics.

Optimized for 1/3.2" Sensors:Engineered to match the optical format of 1/3.2" sensors perfectly, ensuring the image circle utilizes the sensor area efficiently without dark corners.

Controlled Distortion:With optical distortion controlled at <-13.31%, the lens offers a wide perspective while maintaining reasonable image naturalness for its size class.

Balanced F2.4 Aperture:The F2.4 aperture offers a good balance between light intake and depth of field, suitable for standard lighting environments.

Robust & Precise:Despite its small size, the lens maintains optical precision and durability, suitable for integration into various camera modules.

Applications

Miniature Security Cameras

Biometric Recognition Systems (Face ID)

Webcams & Video Conferencing

Portable IoT Devices

Barcode & QR Scanning

Compact Dash Cams

Medical Imaging Devices (Non-endoscopic)

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

If you would like to customize a lens, please send an email to: info@jsdoptical.com

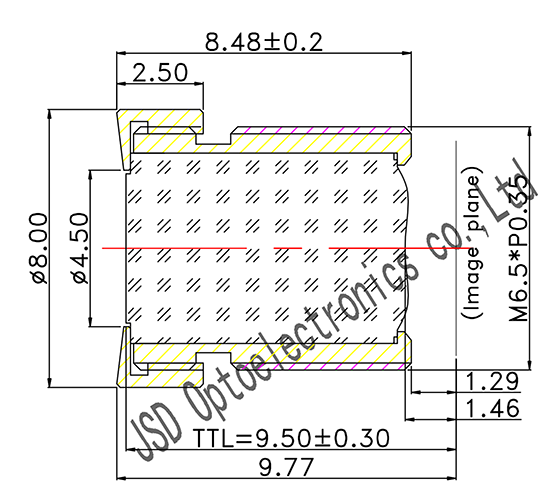

drawing
