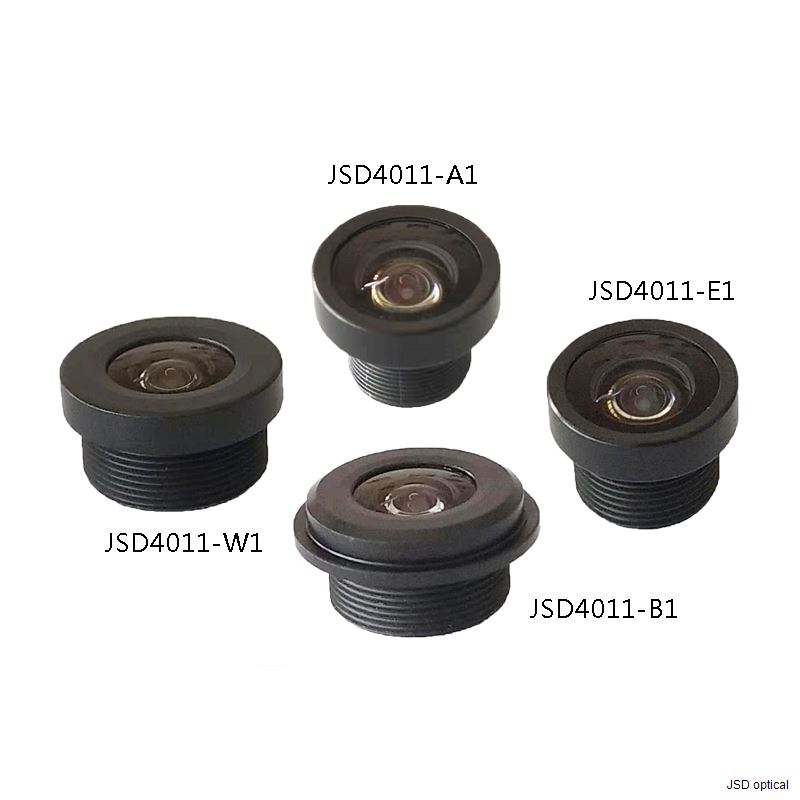

JSD4011

Product Overview

This premium M7 mount fixed focal lens (PN: JSD4011) is meticulously engineered for 1/4-inch image sensors, offering a rare combination of ultra-wide coverage and optical correction. With an extremely short 0.95mm focal length and a bright F2.0 aperture, it provides a massive 160° field of view, capable of capturing nearly a full hemisphere of visual data. Unlike typical wide-angle lenses that suffer from extreme fish-eye effects, this lens features a controlled optical design with distortion <-8.5%, making it ideal for high-precision applications requiring both broad coverage and natural image geometry. Featuring 3MP resolution and a compact form factor, it ensures superior image sharpness across diverse lighting conditions.

Key Features & Benefits

Crisp 3MP Resolution:Optimized for high-definition 3MP imaging, ensuring sharp detail retention and clarity, essential for reliable object detection and video monitoring.

Ultra-Wide 160° FOV:Delivers an expansive 160° panoramic field of view, ideal for environmental monitoring, automotive viewing, and immersive scene capture with minimal blind spots.

Low Distortion Design (<-8.5%):Features advanced optical optimization to keep distortion significantly lower than standard fisheye lenses, maintaining better spatial accuracy and straight-line perception despite the ultra-wide angle.

Optimized for 1/4" Sensors:Designed specifically to match the 1/4-inch image circle, ensuring complete sensor coverage without vignetting and maximizing the potential of compact sensors.

Bright F2.0 Aperture:The wide F2.0 aperture allows for excellent light intake, providing clear, low-noise images even in challenging low-light indoor or outdoor environments.

Compact M8 Build:Built with a standard M8 thread and a compact TTL of 9.29mm, this lens easily integrates into space-constrained devices such as dashcams, drones, and IoT sensors.

Wide Application Versatility:Suited for tasks requiring maximum scene coverage from a single camera point while maintaining a compact physical footprint.

Applications

Automotive (ADAS, Rear View, In-Cabin Monitoring)

Smart Home Security (Video Doorbells)

Virtual Reality (VR) & Augmented Reality (AR)

Wide-Area Surveillance

Drone & Aerial Imaging (FPV)

Robotics & Obstacle Avoidance

Sports & Action Cameras

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

drawing
