JSD4013

Product Overview

This ultra-compact M7 mount fixed focal lens (PN: JSD4013) is engineered for 1/4-inch image sensors, designed to deliver maximum scene coverage in a miniature form factor. With a 2.76mm focal length and F2.4 aperture, it provides an impressive 130° ultra-wide field of view, making it the perfect solution for devices that require panoramic visibility without the bulk of larger optics. Featuring 2MP resolution, this lens offers reliable HD imaging quality, making it ideal for compact surveillance, video doorbells, and portable IoT devices.

Key Features & Benefits

Ultra-Wide 130° FOV:Delivers an expansive field of view, allowing for broad-area scene capture and immersive situational awareness from a single fixed viewpoint.

2MP HD Resolution:Optimized for standard high-definition sensors, providing clear and reliable video output suitable for security monitoring and video conferencing applications.

Miniature M7 Form Factor:Featuring a tiny M7 thread and a Total Track Length (TTL) of 11.91mm, this lens is designed for seamless integration into space-constrained embedded systems and wearable devices.

Optimized for 1/4" Sensors:Precision-engineered image circle ensures full coverage for 1/4" sensor formats, eliminating dark corners and maximizing the effective pixel area.

F2.4 Aperture:Provides a balanced aperture setting that ensures adequate light intake while maintaining a good depth of field for keeping subjects in focus.

Wide-Angle Optical Design:The -10% distortion characteristic is optimized to balance extreme wide-angle coverage with image intelligibility, typical for wide-viewing applications like doorbells and dashcams.

Compact & Lightweight:The small footprint and robust construction make it ideal for portable electronics where weight and size are critical factors.

Applications

Video Doorbells & Intercoms

Smart Home Security Cameras

Body-Worn Cameras (Police/Security)

Compact Dash Cams & DVRs

Robotics Obstacle Avoidance

Consumer IoT Devices

Miniature Action Cameras

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

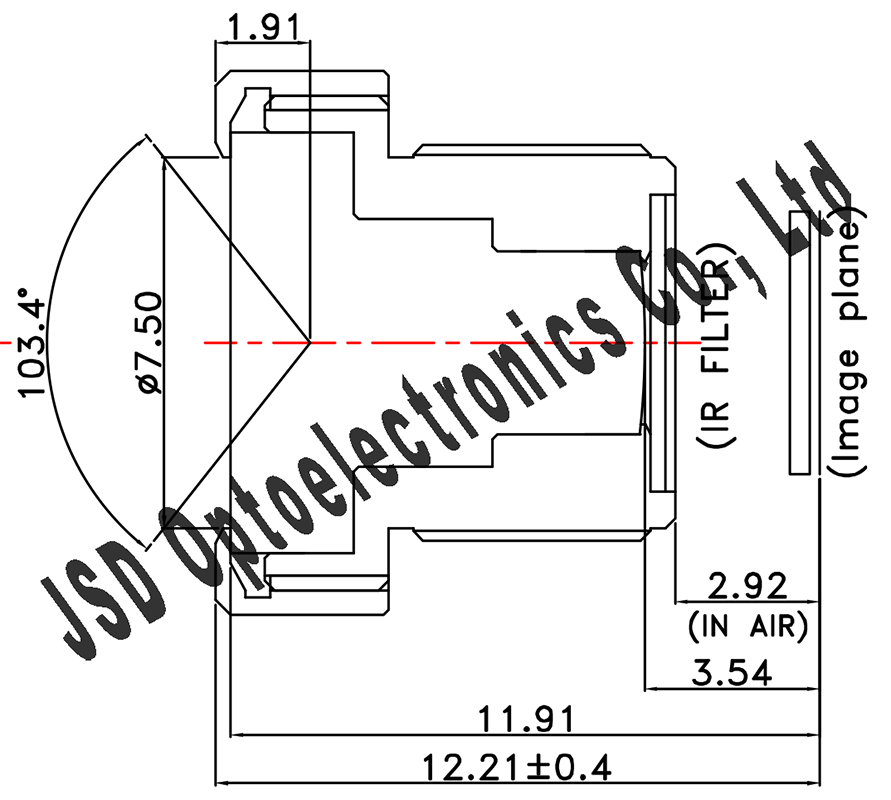

drawing
