JSD5816

Product Overview

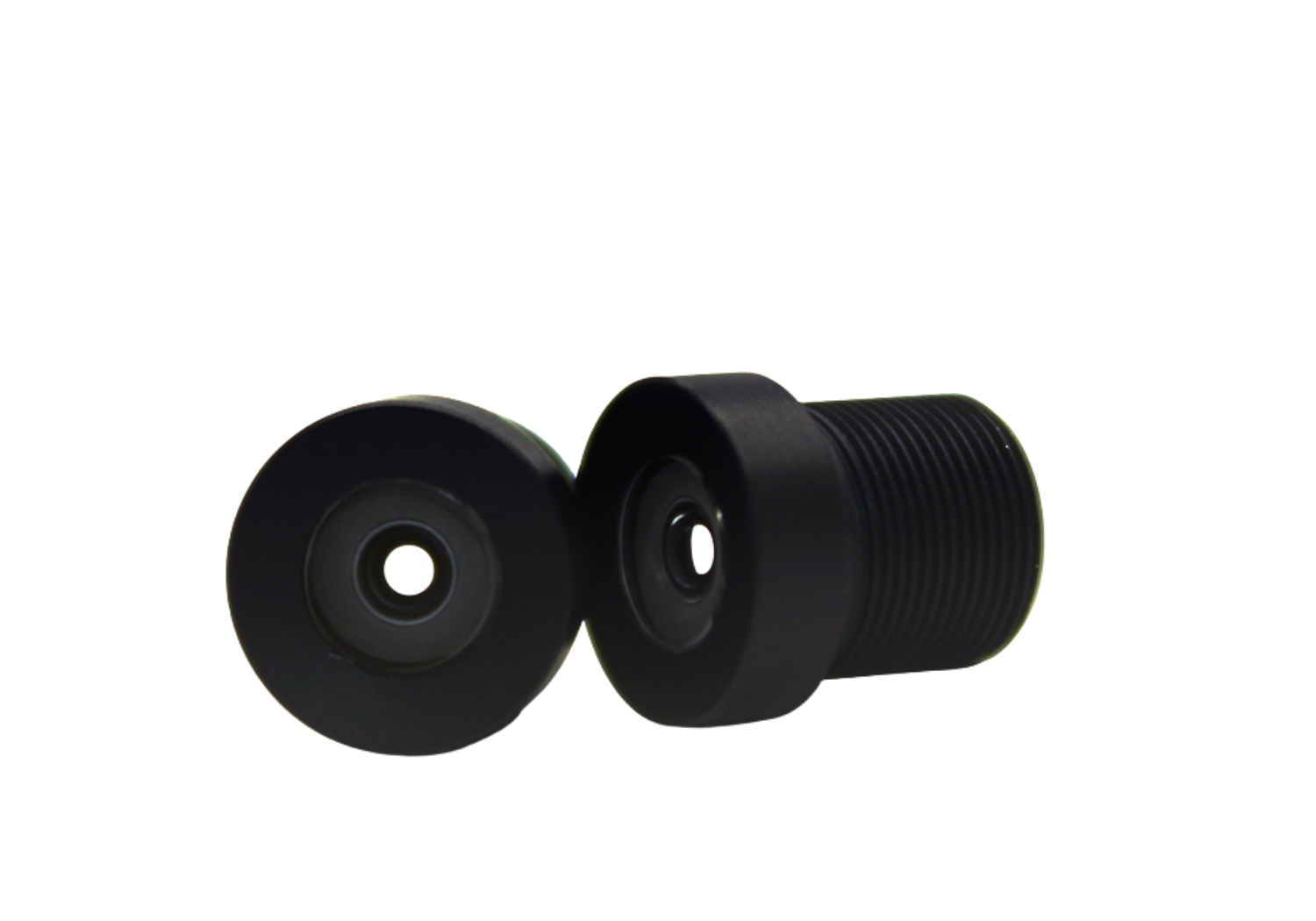

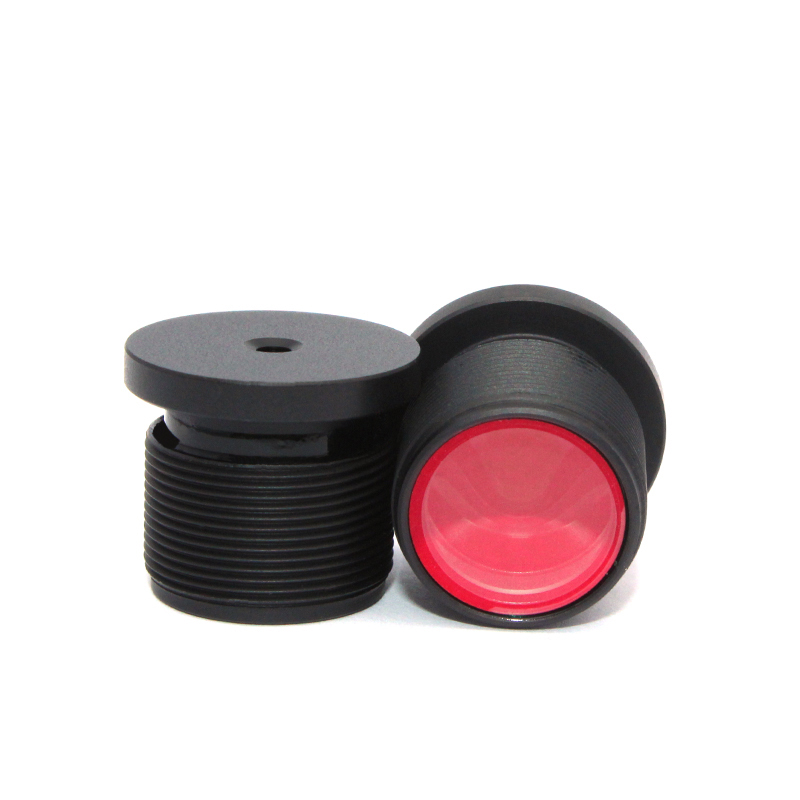

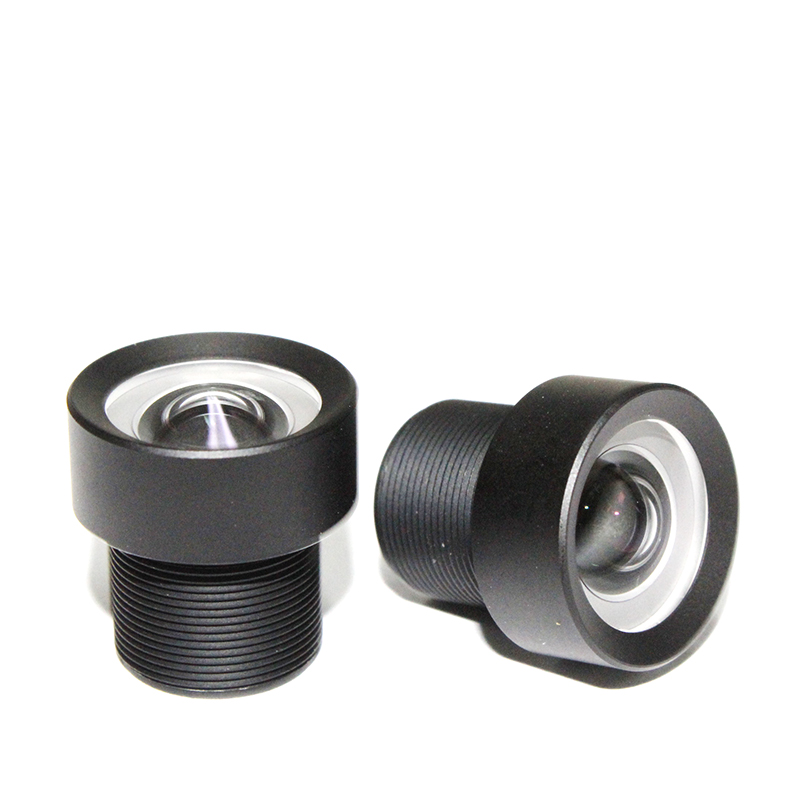

This high-performance M12 mount fixed focal lens is expertly engineered for 1/1.8-inch sensors, delivering exceptional clarity and wide coverage for immersive imaging applications. With a 5.83mm focal length and F1.6 aperture, it provides a balanced 77° field of view, making it ideal for medium-range surveillance, expanded area monitoring, and comprehensive scene capture. Featuring True 8MP resolution and manual focus for precise imaging control, this wide-angle lens ensures superior image sharpness and low distortion across diverse lighting conditions.

Key Features & Benefits

True 8MP Resolution: Delivers crisp, high-definition 4K UHD imaging with exceptional detail retention, ensuring clarity even in complex scenes.

Wide-Angle 77° FOV: Provides a balanced wide field of view ideal for medium-range surveillance, environmental monitoring, and expanded area coverage with minimal blind spots.

Versatile Wide-Angle Applications: Suited for medium-range monitoring, facility surveillance, industrial inspection, and machine vision tasks requiring balanced wide coverage.

Manual Focus Control: Precise manual adjustment enables accurate focal tuning to match specific object distances, optimizing sharpness for critical applications.

Perfect Sensor Match: Engineered specifically for 1/1.8" sensors (e.g., ONSemi OS08A20), featuring a compatible image circle that eliminates vignetting and fully utilizes sensor capabilities.

Enhanced Low-Light Performance: Exceptional F1.6 aperture gathers more light, delivering superior image quality in low-light conditions and enhancing visibility in challenging environments.

Compact & Robust Build: Standard M12*P0.5 thread and optimized TTL design ensure seamless integration into space-constrained devices while maintaining exceptional durability.

Low Distortion Optics: Advanced optical design minimizes distortion across the field of view, maintaining accurate image geometry and true-to-life representations.

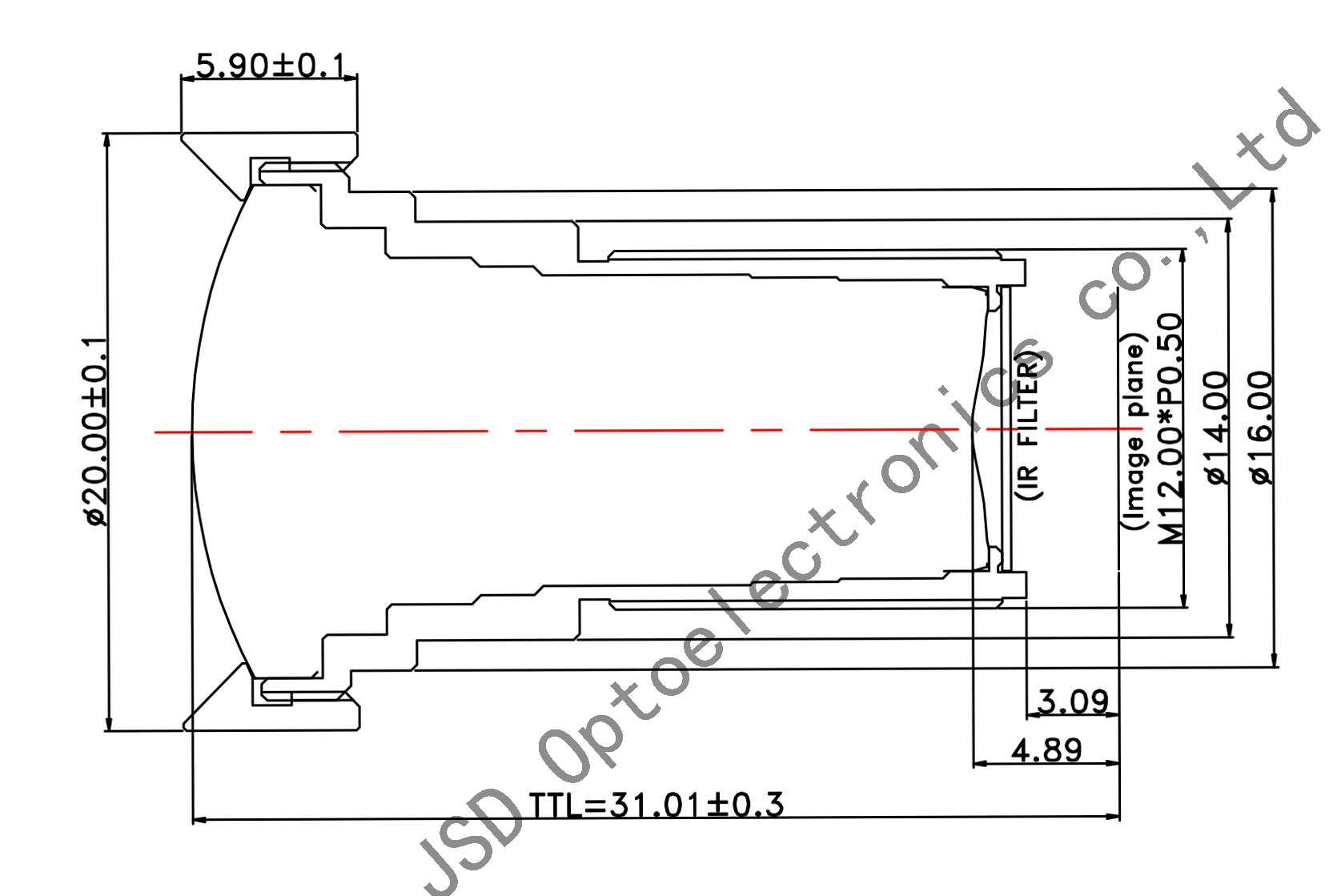

Technical Specifications

Applications

Crowd Monitoring: Effective tracking of group movements in medium-density areas, gathering analysis, and expanded people monitoring with balanced perspective.

Wide-Angle Imaging: Exceptional coverage for medium-range environments with 77° FOV, providing expansive scene capture and broad field observation with minimal blind spots.

Facility Surveillance: Interior monitoring of medium to large rooms, open area security assessment, and structured environment observation.

Traffic Analysis: Vehicle tracking across multiple lanes, intersection coverage, and traffic flow observation with enhanced peripheral vision.

Perimeter Security: Enhanced coverage for site boundaries, fence lines, and extended security perimeters with broader visibility.

Intrusion Detection: Peripheral vision enhancement with wide coverage, boundary monitoring, and broadened threat detection capabilities.

Industrial Inspection: Medium-range component examination, equipment monitoring, and quality control assessments with low distortion and balanced field of view.

Environmental Assessment: Panoramic scene capture, landscape monitoring, and situational awareness for comprehensive analysis.

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling
