JSD9060

Product Overview

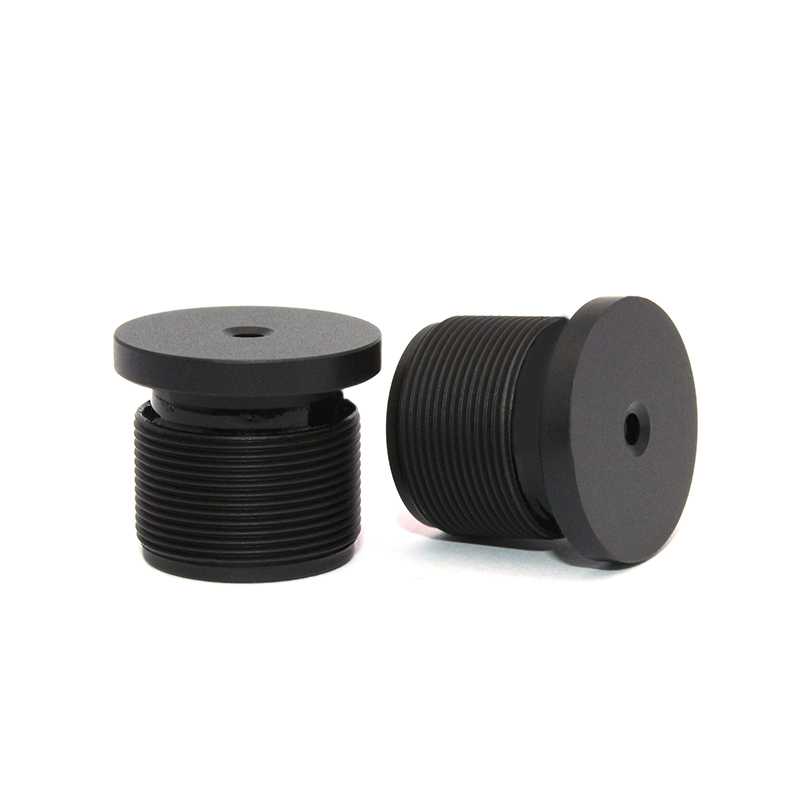

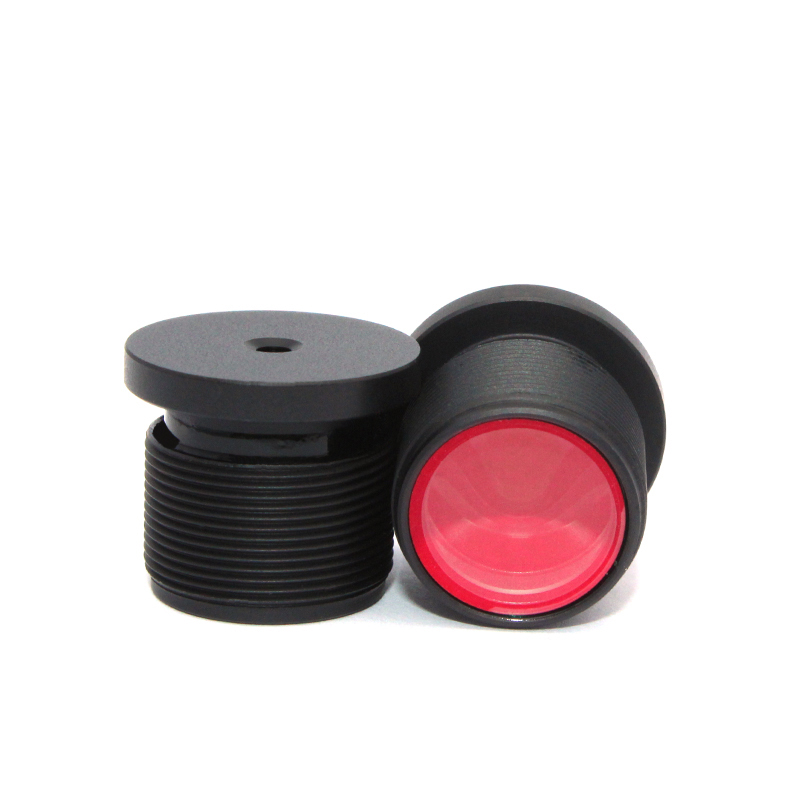

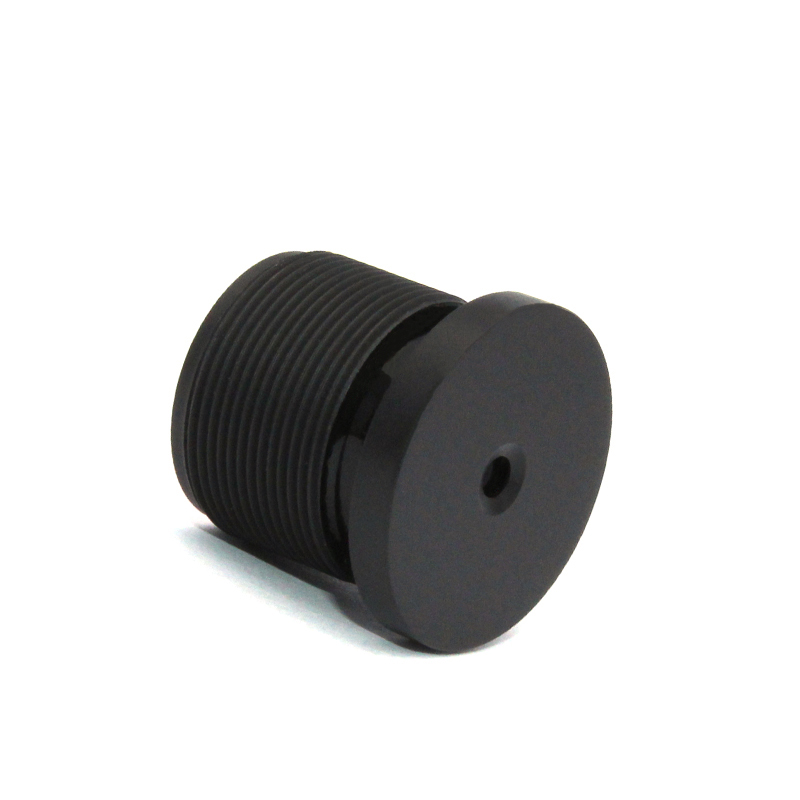

This high-performance M12 mount fixed focal lens is expertly engineered for 1/1.8-inch sensors, delivering exceptional clarity and precision for demanding imaging applications. With a 9mm focal length and F3.0 aperture, it provides an optimal 41° field of view, making it ideal for mid-range surveillance, license plate recognition, and machine vision tasks. Featuring True 8MP resolution and a manual iris for precise light control, this lens ensures superior image quality in diverse lighting conditions.

Key Features & Benefits

True 8MP Resolution: Captures sharp, detailed 4K UHD imagery, ensuring every detail is visible.

Manual Iris Control (F3.0): Adjustable aperture allows optimal light management for consistent performance in varying lighting environments.

Perfect Sensor Match: Designed specifically for 1/1.8" sensors (e.g., ONSemi OS08A20), with a 9mm image circle to eliminate vignetting and maximize sensor potential.

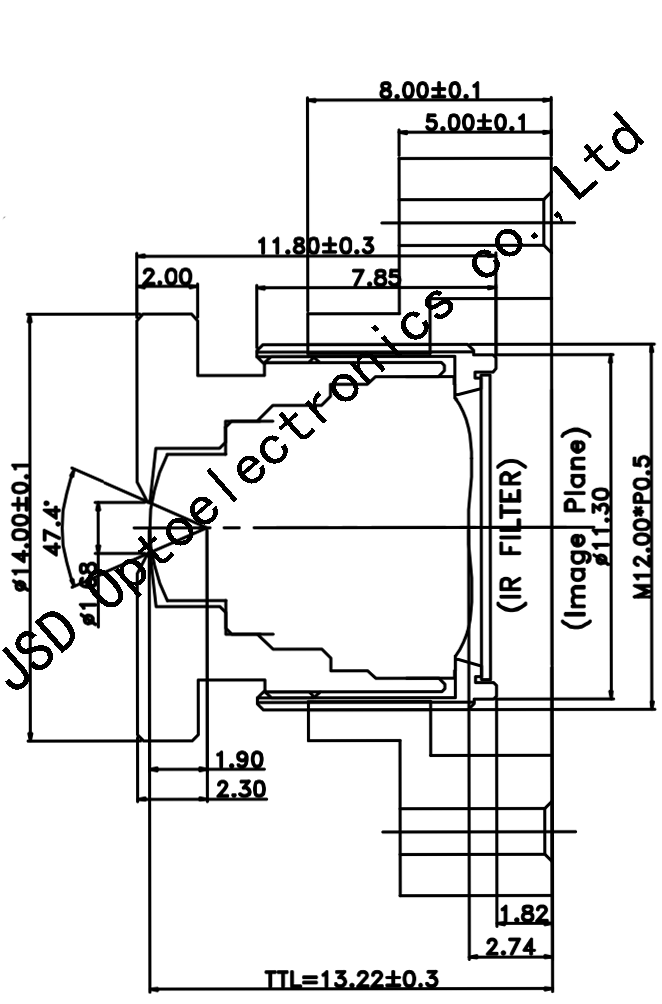

Compact & Robust Design: Standard M12*P0.5 thread and compact TTL 13.22mm design enable easy integration into space-constrained devices.

Wide Application Support: The 41° FOV is ideal for LPR, facial recognition, mid-range monitoring, and industrial inspection.

Technical Specifications

Applications

Security & Surveillance: High-resolution monitoring, LPR/ANPR systems.

Intelligent Traffic Systems (ITS): Violation detection, vehicle identification.

Machine Vision: Quality control, measurement, barcode reading.

Facial Recognition Devices: Access control, smart terminals.

HD Video Conferencing: Professional imaging systems.

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling
